For mmWave system researcher and developer
Key Features and Benefits
Technology migration means equipment needs to be upgraded to fulfill development demands. From RF design challenges of Sub-6 GHz up to mmWave band, and communication system development from 5G NR FR2, SATCOM to Radar, what you need is a seamless transition testbed that can leverage existing equipment.
The system has a built-in programmable intermediate frequency with wide bandwidth and low phase noise, to produce wide-range radio frequency that provides a highly flexible application usage. The solution has been tried, tested, and validated with most Sub-6 GHz instruments to guarantee uncompromised performance.
· The optional frequency band allows more flexible in products design.
· The addition of RF channel switches make switching between frequency band of VNA covered and UD converter provided.

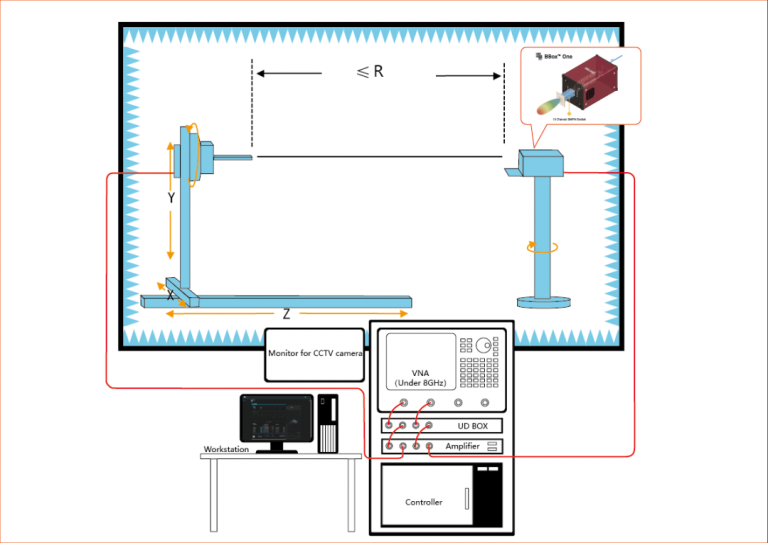

· Integration of microwave chamber, expands the frequency band.
Inside mmWave

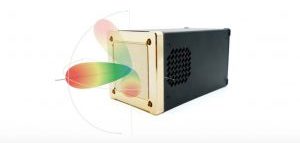

5G Beamformers
The mmW-SDR platform supports advanced beam management and tracking using our beamformers and 5G technology, and includes a 28/39 GHz beamformer for experimenting with advanced beam management and tracking capabilities. The BBox One is a base station with a 4×4 array antenna and the BBox Lite is ideal for UE research with a 1×4 antenna.

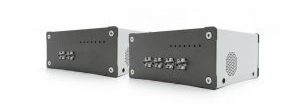

Broadband Frequency Converter
The UD Box 5G extends research capabilities to mmWave frequency bands, supporting RF spectrum ranges of 24-44 GHz with IF of 0.01-14 GHz and IBW up to 800 MHz, with excellent EVM performance for advanced research applications.

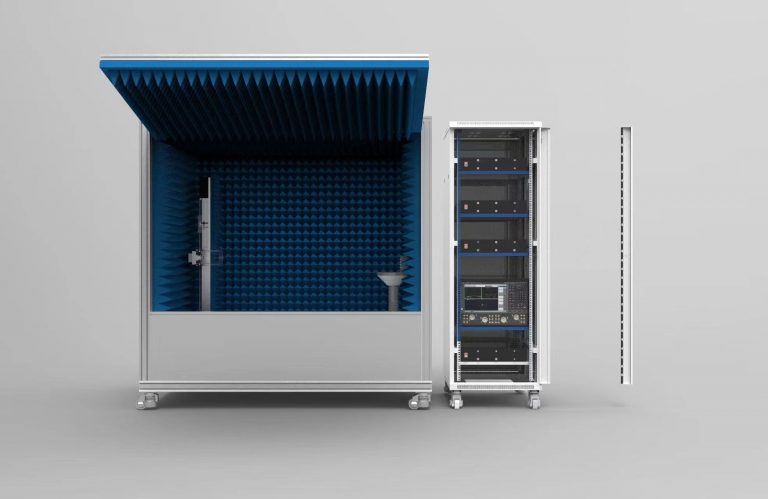

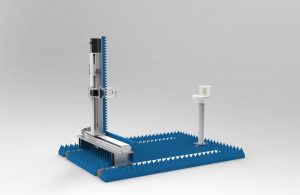

Rendering:
